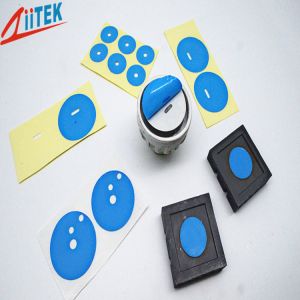

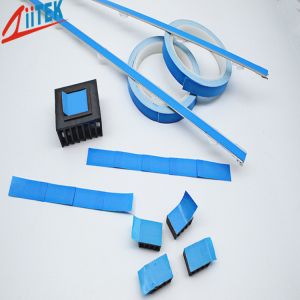

Heat Sink Acrylic Based Gluehighly Double Side Thermal Conductive Acrylic Tape for LED strip

The TIA™800FG Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.

TIA800FG Series Datasheet-(E)-REV01.pdf

Features

> Thermal Conductivity: 0.8 W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive

Applications

> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply

0.005"(0.127mm),0.006"(0.152mm),0.008"(0.203mm),0.010"(0.254mm),0.015"(0.381mm),0.020"(0.508mm)
Consult the factory alternate thickness.

Standard Sizes:
10" x 18"(254mm x 457mm) 10" x 400'(254mm x 121.9M)
Individual die cut shapes can be supplied.

Reinforcement:
TIA™800 Series sheets are fiberglass reinforced.

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Dongguan Ziitek Electronical Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

Ziitek D-U-N-S® Number: 656191068
